Human E&C Co., Ltd., Specializing in manufacturing SWITCH products centered on printing technology

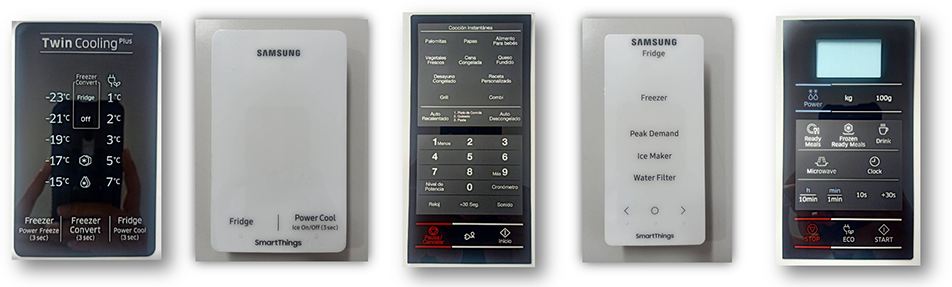

Inlay

Silk screen printing is a method that utilizes a fine mesh stencil;a specially prepared original film plate with the intended shape to be
printed is placed on the stencil, which is then emulsified to block out areas other than the desired shape, enabling the passage of printing ink.
This product is manufactured by applying adhesive tape to a graphic film using silk screen printing technology,
followed by printing through a mold. Its advantages include strong resistance to abrasion, versatile design expression, and shortened development time.

Applications

Digital home appliances and all home appliances such as washing machines, bidets, remote controls, mechanical equipment, medical devices

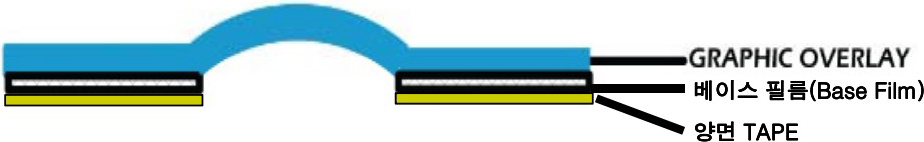

Inlay Panel Structure

Protective Film

This film is used to protect the surface of the Inlay Panel, and is typically made of PE or PET.

Base Film

It is a base film made primarily ofPC or PET material with a thickness of 200, on which the inlay panel is printed.
The fabric thickness varies between 0.25t and 0.5t depending on the product characteristics.

Printing

This involves printing text or borders on the Inlay Panel using inks specifically designed for silk screening.
Depending on the product's function anddesign, special inks such as LED milky white ink or Smog Front UV ink can be used.

Double-Sided Tape

IA non-woven tape is used to attach the inlay panel to the product surface. Currently,
the non-woven double-sided tape with an adhesive strength of at least 1500g or more is used predominantly.
